Canopy Integration
The Canopy integration in HH Data Management allows users to trigger Canopy simulations and visualize their results in HH Data Management.
Canopy Simulation Configuration
The Canopy simulation configuration is used to define:
- the type of Canopy study to run
- how the inputs for the Canopy simulation will be created
- how the results of the Canopy simulation will be processed
- how the feedback from the Canopy integration should be communicated back to HH Data Management
The Canopy simulation configuration is defined on the account management website. Multiple configurations can be created, and they will be listed on this page.
New configurations can be created by clicking the
icon.
| Icon | Description |
|---|---|
 | Edit the current profile |
 | Duplicate the current profile |
 | Export the current profile |
 | Copy the id of the current profile |
 | Delete the current profile |
The Canopy Config page is only available to users with admin-level permissions on the website.
When creating or editing an existing configuration, a dialog will pop up:
General Information
- Name: the name of the profile
- Study type: the type of Canopy study to be run
Canopy Worksheets
Studies can, optionally, be saved to a Canopy Worksheet.
- Write Study Info To Worksheet: if checked, the Canopy study will be saved to the Canopy Worksheet that is specified by the Path To Worksheet Id.
- Path To Worksheet Id: the path (as an HH Data Management expression, relative to the setup) to the parameter that stores the worksheet Id where the study info will be written. For example, if the Worksheet Id is stored in a parameter called
CanopyWorksheetIdin the Event definition, then the path would beEvent.CanopyWorksheetId.
A user can only save a simulation to a Worksheet they own.
Simulation Status
All fields in this section are optional (i.e., any of them can be left blank, in which case the information will not be available in HH Data Management).
The status parameters are used to provide feedback for the Canopy simulation currently running. Parameters should be created in the relevant setup definition, and their names entered here. These parameters can be shown on the setup sheet CID.
- Simulation Status Parameter Name: a string parameter; this will show a one-word status of the current simulation. The possible values are:
- Requested: the request to run a Canopy simulation has been received by the HH Data Management server, and the simulation will be started soon
- Simulation start failed: there was an error when sending the simulation request to the Canopy API
- Simulation started: the simulation has been successfully submitted to the Canopy API and the simulation is running
- Simulation running: the simulation is currently running on Canopy, and the HH Data Management server is waiting for it to complete
- Failed to check status: HH Data Management wasn't able to retrieve the information about the current simulation
- Simulation completed: the Canopy simulation has completed
- Processing results: HH Data Management is starting to process the simulation results (download the outputs from Canopy, post-process them, and upload them to HH Data Management)
- Processing failed: there was an error encountered while processing the results
- Canopy simulation error: the Canopy simulation had errors and did not complete
- Processing completed: HH Data Management has processed all results, and the process is now complete
- Simulation Message Parameter Name: a string parameter; in case of a failure state, more information will be given regarding the nature of the error
- Simulation Status Update Time Parameter Name: a DateTime parameter; the last time a status update was received
Furthermore, the following feedback options are available. Again, there need to be parameters with these names defined in the setup definition for the information to be available.
-
Canopy Feedback Error Parameter Name: a string parameter; this will show any errors that were reported by Canopy
-
Canopy Feedback Warn Parameter Name: a string parameter; this will show any warnings that were reported by Canopy
-
Canopy Feedback Info Parameter Name: a string parameter; this will show any other information that was reported by Canopy
-
Canopy Feedback Collection Name: a collection parameter; this will show any other information that was reported by Canopy
- Canopy Feedback Collection Message Parameter Name: a string parameter of the collection parameter; this will show any other information that was reported by Canopy
- Canopy Feedback Collection Status Parameter Name: a string parameter of the collection parameter; this will show any other information that was reported by Canopy
Inputs
Pre-Simulation
- Sim Version Parameter Name: a string parameter in the AccountOptions definition that will store the current version of the Canopy simulation engine. This can then be used if using Json exports to build the Canopy configuration files.
General
- Study Name Expression: a math expression that is evaluated in the scope of the setup; that is, the name the study will be given in Canopy. If this is left blank then a default name will be used.
- Parameter Name To Save Study Id: a string parameter in the setup definition where the current Canopy study ID can be saved. This is useful for debugging the simulation in the Canopy web UI or when reprocessing results without needing to rerun the Canopy simulation.
- Use Custom Sim Version: if selected, the Canopy simulation version will be set based on the specified Path To Custom Sim Version.
- Path To Custom Sim Version: the path (as an HH Data Management expression, relative to the setup) to the parameter that stores the custom version of the Canopy simulation engine to use for the study. For example, if the ID is stored in the event in a parameter called
CanopyCustomSimVersion, then the path would beEvent.CanopyCustomSimVersion.
- Path To Custom Sim Version: the path (as an HH Data Management expression, relative to the setup) to the parameter that stores the custom version of the Canopy simulation engine to use for the study. For example, if the ID is stored in the event in a parameter called

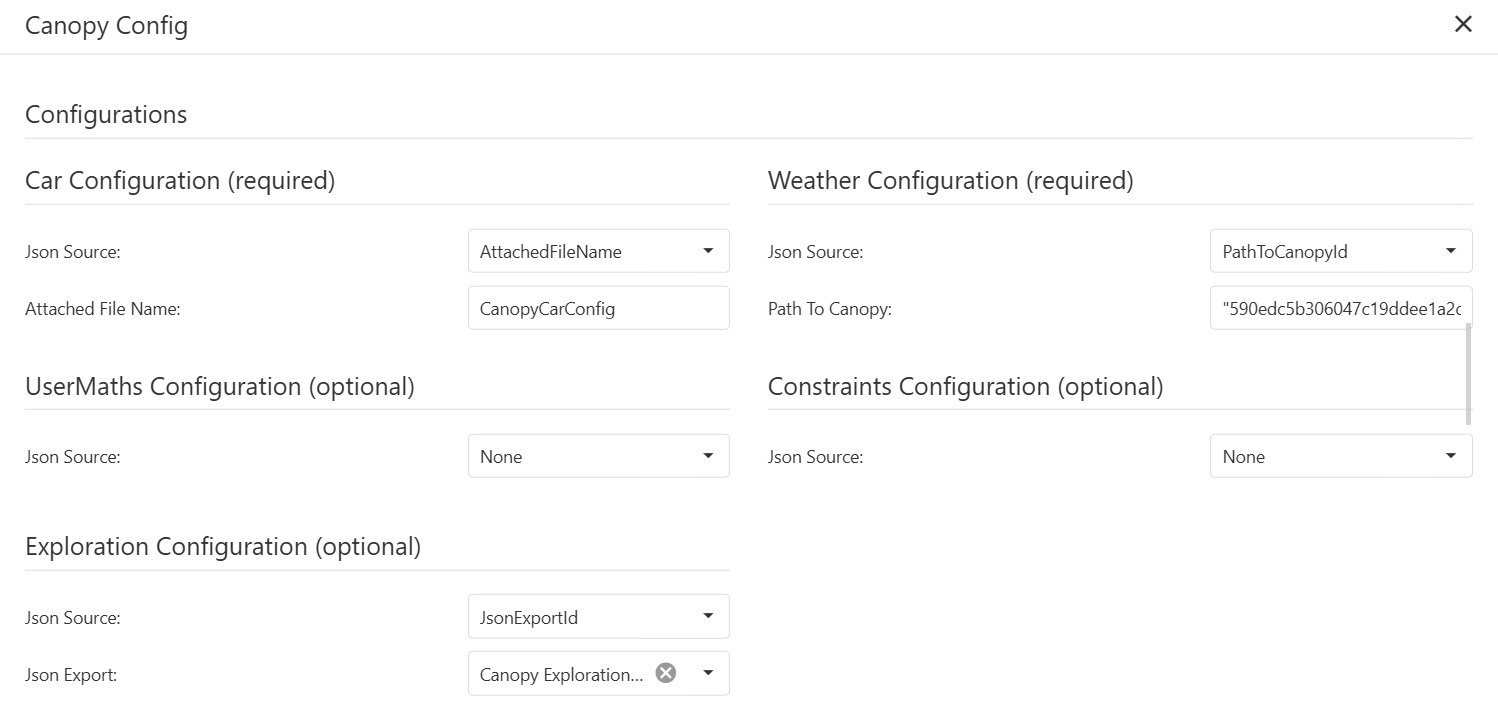

Configurations
The available inputs depend on the selected study type. Some configuration types are required, and others are optional.
| Study Type | Car | Weather | Track | Cornering Options | Limit Options | Sub Limit Options | User Maths | Constraints | Explorations |
|---|---|---|---|---|---|---|---|---|---|
| Straight Sim | r | r | n/a | n/a | n/a | n/a | o | o | o |
| Apex Sim | r | r | n/a | n/a | n/a | n/a | o | o | o |
| Cornering Sim | r | r | n/a | o | n/a | n/a | o | o | o |
| Quasi-Static Lap | r | r | r | n/a | n/a | n/a | o | o | o |
| Dynamic Lap | r | r | r | n/a | n/a | n/a | o | o | o |
| Limit Sim | r | r | n/a | n/a | o | n/a | o | o | o |
| Sub Limit Sim | r | r | n/a | n/a | n/a | r | o | o | o |
r: required o: optional n/a: not applicable
The following options are available:
- None: this configuration type won't be added to the simulation
- PathToCanopyId: the path (as an HH Data Management expression, relative to the setup) of the Text Parameter that stored the Id of the Canopy Json configuration. For example, if the Car configuration Id is stored in a parameter called
CanopyCarConfigIdin the Car definition, then the path would beCar.CanopyCarConfigId. - TextParameter: the path (as an HH Data Management expression, relative to the setup) of the Text Parameter that stored the content of the Canopy Json configuration.
- JsonExportId: the Json Export Profile used to generate the Json configuration file. The configuration will be uploaded to Canopy as part of running the simulation.
- AttachedFileName: the name of the attached file parameter where the Json configuration file is stored in HH Data Management. This configuration will be uploaded to Canopy as part of running the simulation.

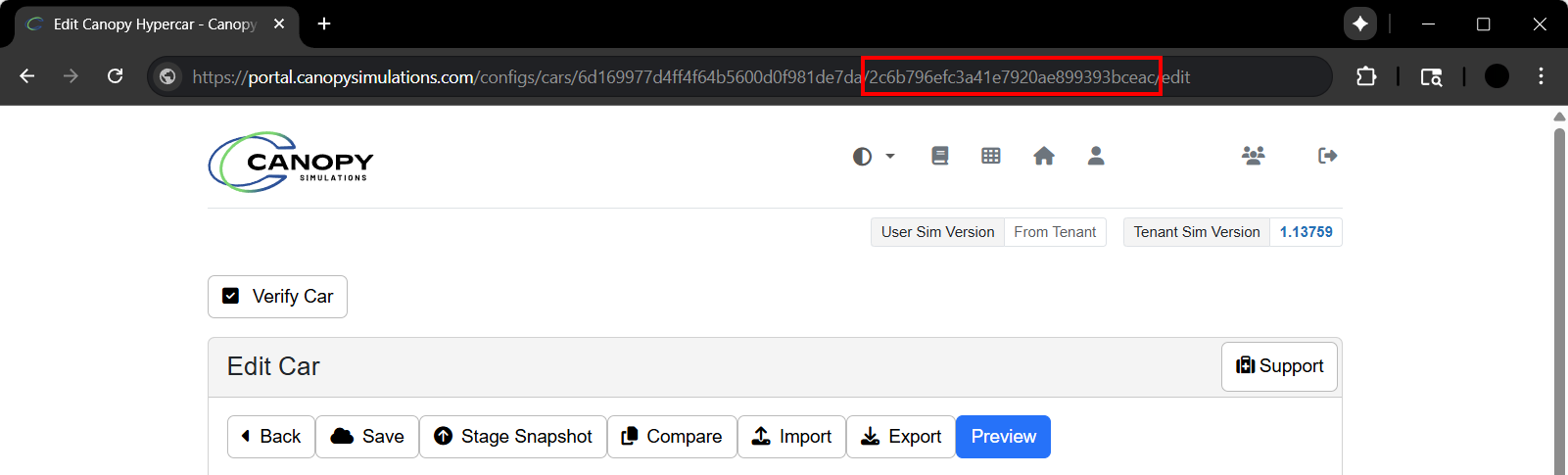

The configuration Id can be retrieved from the address bar of the web browser. Simply,
- Sign in to the Canopy portal
- Open the configuration
- Copy the second Guid
Outputs
General
As with the configuration inputs, these inputs will only be available if applicable for the selected study type. These allow additional configurations to be created and used for results processing of additional results in the output. For example, when running an Apex study, the results from the Straight study can also be processed by creating an additional Straight Sim configuration profile and referencing it in the Apex Sim configuration profile.
- Additional Straight Simulation Configuration: an additional Canopy configuration that will be used to process the Straight Sim results
- Additional Apex Simulation Configuration: an additional Canopy configuration that will be used to process the Apex Sim results
Scalar Results
- Scalar Results Save Option: an option indicating how the scalar results will be processed and saved into HH Data Management
- None: no post-processing of the results will be done
- HHDMParameter: the scalar results will be saved into Parameters in HH Data Management in the Setup definition
- Save Original Scalar File: if checked, then the original CSV file from Canopy will be uploaded to HH Data Management into the specified named attached file parameter in the Setup definition.
- Attached File Name For Original Scalar File: the name of the attached file parameter where the CSV file is stored in HH Data Management. This file will be uploaded to Canopy as part of running the simulation.
Scalar Results Mappings
A mapping that is used to define which scalar outputs from the simulation will be saved to HH Data Management. The mappings define the name of the parameter in the Canopy scalar results and the name of the parameter in the Setup definition in HH Data Management.
Unit conversion will be automatically performed whenever the Canopy scalar results and HH Data Management parameter have matching dimensions.
For example, the Canopy results hRideF200 expressed in meters will be converted to millimeters when creating a parameter hRideF200_StraightSim with the following dimension/unit:
Vector Results
- Save Original Vector File: if checked, then the original CSV file from Canopy will be uploaded to HH Data Management into the specified named attached file parameter in the Setup definition.
- Attached File Name For Original Vector File: the name of the attached file parameter where the CSV file is stored in HH Data Management. This file will be uploaded to Canopy as part of running the simulation.
Converted Vector Results
- Save Converted Vector File: if checked, then the original CSV file from Canopy will be uploaded to HH Data Management into the specified named attached file parameter in the Setup definition.
- Attached File Name For Converted Vector File: the name of the attached file parameter where the CSV file is stored in HH Data Management. This file will be uploaded to Canopy as part of running the simulation.

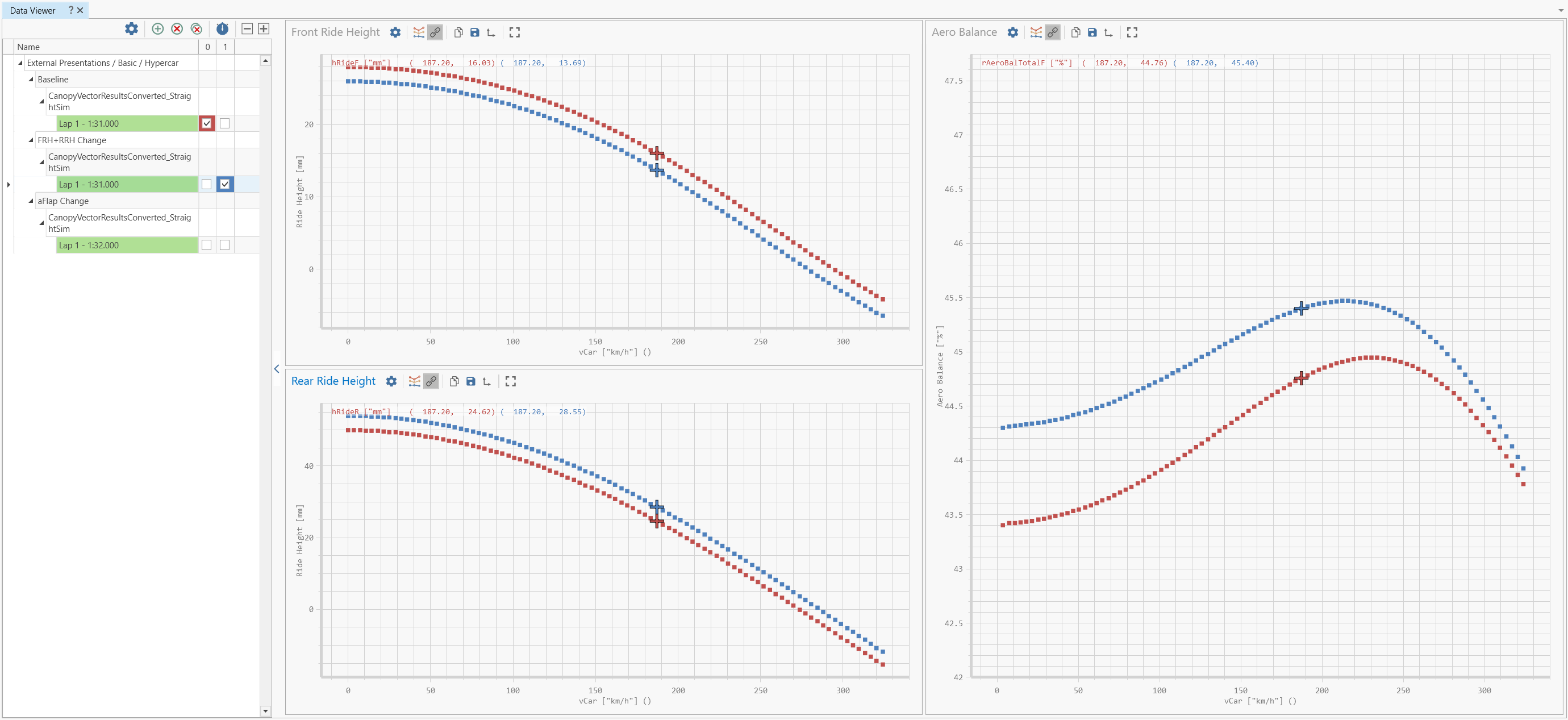

Converted vector files can be visualized using the Data Viewer.
Constraints Results
- Constraints Results Save Option: an option indicating how the constraints results will be processed and saved into HH Data Management
- None: no post-processing of the results will be done
- HHDMParameter: the constraints results will be saved into Parameters in HH Data Management in the Setup definition
- Save Constraints File: if checked, then the original CSV file from Canopy will be uploaded to HH Data Management into the specified named attached file parameter in the Setup definition.
- Attached File Name For Original Constraints File: the name of the attached file parameter where the CSV file is stored in HH Data Management. This file will be uploaded to Canopy as part of running the simulation.
Constraints Results Mapping
A mapping that is used to define which constraints outputs from the simulation will be saved to HH Data Management. The mappings define the name of the parameter in the Canopy constraint results and the name of the parameter om the Setup definition in HH Data Management.
Authentication
For the HH Data Management Canopy integration to be able to interact with the Canopy API, authentication credentials must be provided. These are defined in the backstage options.
These are the same credentials used to sign in to the Canopy portal, except for the Client Secret that must be requested from Canopy directly.
Credentials can be verified by clicking the Authorize button on the Canopy Swagger.
Trigger/Reprocess Simulations
Simulations can be triggered/reprocessed from the Setup, Setup Comparison, or Custom Views.

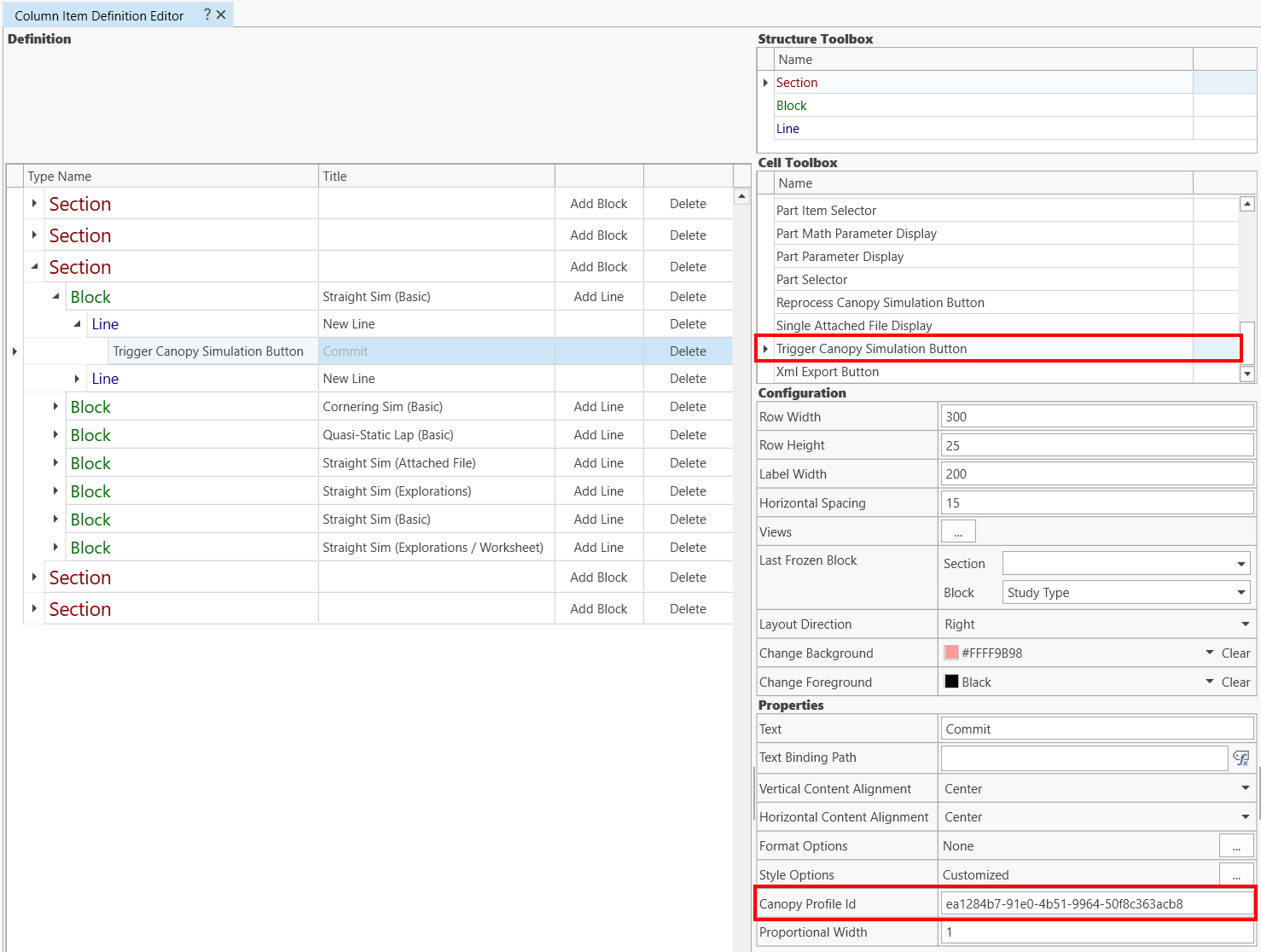

Trigger Canopy Simulation and Reprocess Canopy Simulation buttons can be added to CID or CGD definitions.
New scalar results can be added without re-running the simulation by simply
- Updating the Canopy Simulation Profile Outputs to add new item(s) to the parameter mapping list
- Clicking the Reprocess Canopy Simulation Button
Roadmap
This feature is still in active development; please be sure to report any bugs, undesirable behaviour from the system, or general feedback.
Topics that we plan to work on in the near future
- ability to trigger/reprocess simulations from the API
- option for any user to submit a simulation to a worksheet they do not own
- ability to auto-trigger simulations (e.g., when a setup parameter changes, automatically trigger a simulation run)
