Math Expressions

This section explains the syntax, and available functions and scopes for the math expressions. Math expressions are used in various places in the software:

math parameters
exports
CID cell formatting

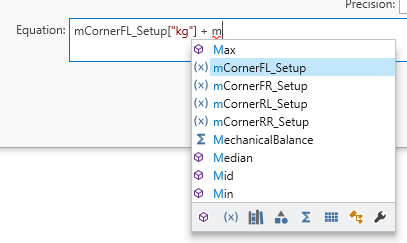

When writing a math expression there will be an auto complete functionality that can help to find parameter and function names.

Syntax

When writing a math expression, parameters from the current definition or other related definitions can be accessed and functions can be called to perform operations. Basic numerical, text and boolean operators are available.

Accessing a parameter

Parameters can be accessed by their names. Note that part item parameters are accessed using the name of the part parameter with PartItem added to the end of the name.

Operators

The following numerical operators are available:

+ addition
- subtraction
* multiplication
/ division

The following boolean operators are available:

< less than
<= less than or equal
< greater than
<= greater than or equal
&& and
|| or
== equal
!= not equal

The following operators are available for date time parameters:

+ addition. If the LHS is a date time and the RHS is a numerical parameter then the return value will be a new date time with the number of seconds from the RHS added to the LHS date time
- subtraction. If the LHS and RHS of the equation are both date time parameters then the return value will be a numerical value with the number of seconds difference between the two provided dates. If the LHS is a date time and the RHS is a numerical parameter then the return value will be a new date time with the number of seconds from the RHS subtracted from the LHS date time

String concatenation

If the return types of the LHS and RHS of the + operator do not match then operator will return a string containing the concatenation of the two values. For example 1 + "test" will return "1test".

Constant values

Constant values can be defined in an expression:

numerical: type a number, e.g. 1.23
string: type some text surrounded by double-quotes, e.g. "test"
boolean: type either true or false

Keywords

The following keywords are available

null: mainly used in a boolean comparison to check if a parameter is set, e.g. FrontSpring != null
this: represents the current scope

Scopes

The scope is an important concept to be aware of when writing a math expression. The scope defines what entity the math expression is referencing. If you are writing a math expression in a math parameter in a setup definition, then that setup definition is the current scope. You can access any parameters on that setup directly by typing the parameter name. To change scope and access a parameter from a different entity the dot-notation is used. Again using the setup as an example, to reference a parameter from the related event you would type Event. and then a list of parameters defined in the event definition will be available in the auto update

You can join as many scope changes together, for example writing Event.Championship.Name would let you access the championship name from a setup. The auto complete normally lets you find the correct scope for anything you need, but the data model documentation provides a full overview of the software.

Unit Management

Whenever a numerical parameter with a dimension and unit defined is accessed, a unit conversion can be performed to change the returned unit. This is done using square brackets, for example mCornerFL["kg"]. A list of all available dimensions and units can be found in the units documentation.

Function Reference

This section lists all functions that are available to be used in math expressions.

Numerical Functions

Abs


Abs(double)	Returns the absolute value of the supplied number.

Abs(double value)

Returns the absolute value of the supplied number.

Parameters
double value A number that is greater than or equal to Decimal.MinValue, but less than or equal to Decimal.MaxValue.
Returns
double A decimal number, x, such that 0 ≤ x ≤ Decimal.MaxValue.
Examples
Abs(-2.3) // Returns 2.3

ACos


ACos(double)	Returns the angle whose cosine is the specified number.

ACos(double value)

Returns the angle whose cosine is the specified number.

Parameters
double value A number representing a cosine, where value must be greater than or equal to -1, but less than or equal to 1.
Returns
double An angle, θ, measured in radians, such that 0 ≤ θ ≤ π.
Examples
ACos(1) // Returns 0
ACos(0) // Returns Math.PI/2

ASin


ASin(double)	Returns the angle whose sine is the specified number.

ASin(double value)

Returns the angle whose sine is the specified number.

Parameters
double value A number representing a sine, where value must be greater than or equal to -1, but less than or equal to 1.
Returns
double An angle, θ, measured in radians, such that -π/2 ≤ θ ≤ π/2.
Examples
ASin(0) // Returns 0
ASin(1) // Returns Math.PI/2

ATan


ATan(double)	Returns the angle whose tangent is the specified number.

ATan(double value)

Returns the angle whose tangent is the specified number.

Parameters
double value A number representing a tangent.
Returns
double An angle, θ, measured in radians, such that -π/2 ≤ θ ≤ π/2.
Examples
ATan(0) // Returns 0
ATan(1) // Returns Math.PI/4

Average


Average(params double[])	Produces the average value of the entered values.

Average(params double[] values)

Produces the average value of the entered values.

Parameters
params double[] values The list of values to average.
Returns
double The average value.
Examples
Average(2) // Returns 2
Average(2,3,4,5,6,7,8) // Returns 5

Cos


Cos(double)	Returns the cosine of the specified number.

Cos(double value)

Returns the cosine of the specified number.

Parameters
double value The number to take the cosine of.
Returns
double The cosine.
Examples
Cos(0) // Returns 1
Cos(3.1415926535897931) // Returns -1

Count


Count(List<FlatModel> \| List<double>)	Counts the items from a list of values.

Count(List<FlatModel> | List<double> values)

Counts the items from a list of values.

Parameters
List<FlatModel> | List<double> values The list to count.
Returns
double The number of items in the list.
Examples
Count(SampleCollection1) // Returns the number of items in the collection.

Degrees


Degrees(double)	Converts a number in radians to degrees.

Degrees(double value)

Converts a number in radians to degrees.

Parameters
double value The value to convert.
Returns
double The value in degrees.
Examples
Degrees(3.1415926535897931) // Returns 180

DoubleToString


DoubleToString(double)	Converts a double to a string.

DoubleToString(double value)

Converts a double to a string.

Parameters
double value The double to convert.
Returns
string The double as a string.
Examples
DoubleToString(2) // Returns "2"
DoubleToString(2.4) // Returns "2.4"

FirstNotNull


FirstNotNull(params double[])	Returns the first parameter that is not null from a list of parameters.

FirstNotNull(params double[] values)

Returns the first parameter that is not null from a list of parameters.

Parameters
params double[] values The parameters to search.
Returns
double The first parameter that is not null.
Examples
FirstNotNull(2.5, 2.3) // Returns 2.5
FirstNotNull(null, 2.3) // Returns 2.3

Interpolate


Interpolate(List<FlatModel>, string, string, double, bool)	Interpolates a collection of values with a 1D linear interpolation algorithm.
Interpolate(List<FlatModel>, string, string, string, double, double, bool)	Interpolates a collection of values with a 2D linear interpolation algorithm.

Interpolate(List<FlatModel> models, string xParameterName, string valueParameterName, double xValue, bool extrapolate)

Interpolates a collection of values with a 1D linear interpolation algorithm.

Parameters
List<FlatModel> models A list of flat models to build the values to interpolate with.
string xParameterName The name of the parameter on the flat model to use to build the x variables for interpolation.
string valueParameterName The name of the parameter on the flat model to interpolate.
double xValue The x value to interpolate for.
bool extrapolate Whether to extrapolate or not (in which case it would take the min or max value of valueParameterName).
Returns
double The interpolated value.

Interpolate(List<FlatModel> models, string xParameterName, string yParameterName, string valueParameterName, double xValue, double yValue, bool extrapolate)

Interpolates a collection of values with a 2D linear interpolation algorithm.

Parameters
List<FlatModel> models A list of flat models to build the values to interpolate with.
string xParameterName The name of the parameter on the flat model to use to build the x variables for interpolation.
string yParameterName The name of the parameter on the flat model to use to build the y variables for interpolation.
string valueParameterName The name of the parameter on the flat model to interpolate.
double xValue The x value to interpolate for.
double yValue The y value to interpolate for.
bool extrapolate Whether to extrapolate or not.
Returns
double The interpolated value.

Length


Length(string)	Returns the length of a supplied string.

Length(string text)

Returns the length of a supplied string.

Parameters
string text The string to compute the length of.
Returns
double A non-negative integer representing the length of the string.
Examples
Length("test") // Returns 4
Length("test")*2 // Returns 8

Max


Max(params double[])	Returns the largest of the specified numbers.

Max(params double[] values)

Returns the largest of the specified numbers.

Parameters
params double[] values The numbers to compare.
Returns
double The specified number with the largest value.
Examples
Max(-3) // Returns -3
Max(2,3,4,2,-3,-12) // Returns 4

Min


Min(params double[])	Returns the smallest of the specified numbers.

Min(params double[] values)

Returns the smallest of the specified numbers.

Parameters
params double[] values The numbers to compare.
Returns
double The specified number with the smallest value.
Examples
Min(-2,3,5,-9) // Returns -9

Pi


Pi()	Returns the constant value of π

Pi()

Returns the constant value of π

Returns
double The constant value of π

Power


Power(double, double)	Computes a given number to a given power.

Power(double value, double power)

Computes a given number to a given power.

Parameters
double value The base.
double power The power.
Returns
double The computed double value.
Examples
Power(2,2) // Returns 4
Power(4,0.5) // Returns 2
Power(2,-1) // Returns 0.5
Power(-2,2) // Returns 4

Radians


Radians(double)	Converts degrees into radians.

Radians(double value)

Converts degrees into radians.

Parameters
double value A number in degrees.
Returns
double A number in radians.
Examples
Radians(180) // Returns Math.PI

Round


Round(double, double)	Rounds a value to the nearest integer or to the specified number of fractional digits.

Round(double value, double decimals)

Rounds a value to the nearest integer or to the specified number of fractional digits.

Parameters
double value A number to be rounded.
double decimals The number of fractional digits in the return value.
Returns
double The rounded number. If value has fewer decimal places than decimals, it is returned unchanged.
Examples
Round(2.5,2) // Returns 2.5
Round(2.4563,2) // Returns 2.46
Round(-3.454364,0) // Returns -3

Sign


Sign(double)	Returns the arithmetic sign (+1, -1 or 0) of a supplied number.

Sign(double value)

Returns the arithmetic sign (+1, -1 or 0) of a supplied number.

Parameters
double value The numerical value to determine the sign of.
Returns
double An integer representing an arithmetic sign (1, -1 or 0).
Examples
Sign(1) // Returns 1
Sign(-2) // Returns -1
Sign(0) // Returns 0

Sin


Sin(double)	Returns the sine of the specified number.

Sin(double value)

Returns the sine of the specified number.

Parameters
double value The value to take the sine of.
Returns
double The sine.
Examples
Sin(0) // Returns 0
Sin(1.5707963267949) // Returns 1

Sqrt


Sqrt(double)	Returns the square root of a specified number.

Sqrt(double value)

Returns the square root of a specified number.

Parameters
double value The number whose square root is to be found.
Returns
double The positive square root.
Examples
Sqrt(4) // Returns 2

Sum


Sum(List<double>)	Returns the sum of the items in a list.

Sum(List<double> values)

Returns the sum of the items in a list.

Parameters
List<double> values The list to sum.
Returns
double The sum of all items supplied.

Tan


Tan(double)	Returns the tangent of the specified number.

Tan(double value)

Returns the tangent of the specified number.

Parameters
double value The value to take the tangent of.
Returns
double The tangent.
Examples
Tan(0) // Returns 0

Truncate


Truncate(double, double)	Truncates a number to the specified number of decimals.

Truncate(double value, double count)

Truncates a number to the specified number of decimals.

Parameters
double value The value to truncate.
double count The number of decimals to truncate to.
Returns
double Either an integer or a double with less than or equal to count decimals.
Examples
Truncate(-53.456677,2) // Returns -53.45
Truncate(-53.454677)  // Returns -53

String Manipulation Functions

Concatenate


Concatenate(double \| string \| bool, params double[] \| string[] \| bool[])	Join two or more values into one string.

Concatenate(double | string | bool value1, params double[] | string[] | bool[] value2)

Join two or more values into one string.

Parameters
double | string | bool value1 The first string.
params double[] | string[] | bool[] value2 The second string.
Returns
string The joined string.
Examples
Concatenate("test1","-","test2") // Returns "test1-test2"
Concatenate("tes","t") // Returns "test"
Concatenate(null,"-","test2") // Returns "-test2"
Concatenate("test1","-",3) // Returns "test1-3"

GetCurrentUserProperty


GetCurrentUserProperty(string)	Returns the current username.

GetCurrentUserProperty(string parameter)

Returns the current username.

Parameters
string parameter The property to retrieve from the user. Either "Username" or "DisplayName".
Returns
string The current username.
Examples
GetCurrentUserProperty("Username") // Returns test@hh-dev.com

GetThemeName


GetThemeName()	Returns the name of the current theme of the software on the users' computer.

GetThemeName()

Returns the name of the current theme of the software on the users' computer.

Returns
string A string value of either "Light" or "Dark"

Left


Left(string, double)	Returns the first *count* characters of a string.

Left(string text, double count)

Returns the first count characters of a string.

Parameters
string text The string to return characters from.
double count The number of characters to return. Must be a non-negative integer, and if a value is specified that is greater than the number of characters in the string, the entire string will be returned.
Returns
string A string of the specified characters.
Examples
Left("test",3) // Returns "tes"

Lower


Lower(string)	Returns a copy of a string converted to lowercase.

Lower(string text)

Returns a copy of a string converted to lowercase.

Parameters
string text The string to operate on.
Returns
string A lowercase string
Examples
Lower("TesT1") // Returns "test1"
Lower("1234") // Returns "1234"

Mid


Mid(string, double, double)	Returns a specified number of characters from the middle of a supplied string.

Mid(string text, double start, double count)

Returns a specified number of characters from the middle of a supplied string.

Parameters
string text The string to copy from.
double start The 0-based index of the first character to copy.
double count The number of characters to copy.
Returns
string A substring copied from the supplied string.
Examples
Mid("test1",2,2) // Returns "st"

Proper


Proper(string)	Converts all characters in a supplied string to proper case.

Proper(string text)

Converts all characters in a supplied string to proper case.

Parameters
string text The string to format.
Returns
string A string in proper case.
Examples
Proper("tesT1") // Returns "Test1"

Replace


Replace(string, double, double, string)	Copies a string and replaces part of it with a new substring.

Replace(string text, double start, double count, string replacement)

Copies a string and replaces part of it with a new substring.

Parameters
string text The string to operate on.
double start The zero-based index of where to start the substitution in the base string.
double count The number of characters to replace in the base string. If 0, replacement will be inserted immediately before the index specified by start.
string replacement The substring to replace with.
Returns
string The new string with the substitution.
Examples
Replace("test",0,2,"yy") // Returns "yyst"
Replace("01234567",2,5,"Hello") // Returns "01Hello7"
Replace("0123456789",4,0,"Hello") // Returns "0123Hello456789"

Right


Right(string, double)	Returns a specified number of characters from the end of a string.

Right(string text, double count)

Returns a specified number of characters from the end of a string.

Parameters
string text The string to copy from.
double count The number of characters to return.
Returns
string The specified substring.
Examples
Right("test",3) // Returns "est"

StringToDateTime


StringToDateTime(string, string, string)	Returns a DateTime from the input string.

StringToDateTime(string dateTime, string timeZone, string pattern)

Returns a DateTime from the input string.

Parameters
string dateTime The string to parse.
string timeZone The timezone to return.
string pattern The pattern datetime is expressed in.
Returns
DateTime The parsed DateTime.
Examples
StringToDateTime("2020-01-24 13:41", "America/Argentina/Buenos_Aires", "yyyy-MM-dd HH:mm")

StringToDouble


StringToDouble(string)	Parses a double from a string.

StringToDouble(string text)

Parses a double from a string.

Parameters
string text The string to parse. Commas and dots both work as decimal separators. There may not be any other separators (e.g. "10,000" is parsed as 10, not 10000).
Returns
double The parsed double.
Examples
StringToDouble("3.5") // Returns 3.5
StringToDouble("3,5") // Returns 3.5

StripLetters


StripLetters(string)	Removes all letter characters and whitespace from a string.

StripLetters(string text)

Removes all letter characters and whitespace from a string.

Parameters
string text Value to strip from
Returns
string The stripped string.
Examples
StripLetters("Run 1") // Returns "1"

Substitute


Substitute(string, string, string)	Finds and substitues text in a string.

Substitute(string text, string old_Text, string new_Text)

Finds and substitues text in a string.

Parameters
string text The base string to search.
string old_Text The substring to replace in text.
string new_Text The string to replace old_text with.
Returns
string The new string.
Examples
Substitute("test1","1","2") // Returns "test2"

TextJoin


TextJoin(string, bool, params string[])	Joins a series of strings with a delimiter.

TextJoin(string delimiter, bool ignore_Empty, params string[] strings)

Joins a series of strings with a delimiter.

Parameters
string delimiter The delimiter to insert between strings.
bool ignore_Empty When true, if a string is empty, it will be ignored. Useful to avoid having two consecutive delimiters.
params string[] strings The strings to join. Any number >1 of strings can be supplied.
Returns
string The new joined string.
Examples
TextJoin("-",false,"Test1","Test2") // Returns "Test1-Test2"
TextJoin("-",true,"Test1","Test2","","Test3") // Returns "Test1-Test2-Test3"

ToString


ToString(double \| string \| bool \| JsonElement)	Converts the input to a string.

ToString(double | string | bool | JsonElement value)

Converts the input to a string.

Parameters
double | string | bool | JsonElement value The value to convert to a string.
Returns
string The converted string.
Examples
ToString(3) // Returns "3"
ToString(true) // Returns "True"

Upper


Upper(string)	Returns a copy of this string converted to uppercase.

Upper(string text)

Returns a copy of this string converted to uppercase.

Parameters
string text The string to convert to uppercase.
Returns
string The uppercase equivalent of the current string.
Examples
Upper("test1") // Returns "TEST1"

Logical Functions

GetPropertyValue


GetPropertyValue(Part, string, Type)	Returns a PartProperty from a Part. Allows for dynamic part property access.

GetPropertyValue(Part part, string parameter, Type type)

Returns a PartProperty from a Part. Allows for dynamic part property access.

Parameters
Part part The part to access.
string parameter The name of the property on the part.
Type type The type the specified property will return.
Returns
double The found PartProperty of the specified type.
Examples
GetPropertyValue(SpringFL,"Rate","double") // Returns the double value of the property "SpringFL.Rate"
GetPropertyValue(ARBFront,Concatenate("kArb_",PosFL.Name,"_",ARBPosFR.Name),"double") // Returns ARBFront.kArb_1_1 if ARBPosFL & FR are equal to "1".

If


If(bool, double \| string \| bool, double \| string \| bool)	Regurgitates the second parameter if the first is true, and the third if the first parameter is false.

If(bool condition, double | string | bool trueCase, double | string | bool falseCase)

Regurgitates the second parameter if the first is true, and the third if the first parameter is false.

Parameters
bool condition Condition determining which parameter is returned
double | string | bool trueCase Parameter to return if the first is true
double | string | bool falseCase Parameter to return if the first is false.
Returns
double The second parameter if the first is true, and the third if the first parameter is false.
Examples
If(1>0,"Correct","Incorrect") // Returns "Correct"

IsNull


IsNull(double \| string \| bool \| DateTime \| FlatModel)	Returns true if the input value is null and false otherwise.

IsNull(double | string | bool | DateTime | FlatModel value)

Returns true if the input value is null and false otherwise.

Parameters
double | string | bool | DateTime | FlatModel value The value to validate.
Returns
bool A boolean value indicating if the input is null or not.
Examples
IsNull("") // Returns true
IsNull(2) // Returns false
IsNull(2+5) // Returns false

Date Time Functions

DateTimeToString


DateTimeToString(DateTime, string)	Formats a DateTime as a string using the provided format.

DateTimeToString(DateTime dateTime, string format)

Formats a DateTime as a string using the provided format.

Parameters
DateTime dateTime The DateTime to format.
string format The string to format with.
Returns
string The formatted string.
Examples
DateTimeToString(Event.StartTime,"yyyy") // Returns 2024
DateTimeToString(Event.StartTime,"yy-MM-dd") // Returns "24-01-28"
DateTimeToString(Event.StartTime,"ddd, MMM dd, yyyy") // Returns "Sun, Jan 28, 2024"

Now


Now()	Returns an Instant representing the exact time the function is called in UTC.
Now(string)	Returns an Instant representing the exact time the function is called in the specified timezone.

Now()

Returns an Instant representing the exact time the function is called in UTC.

Returns
DateTime The Instant representing the exact time the function is called.

Now(string timeZone)

Returns an Instant representing the exact time the function is called in the specified timezone.

Parameters
string timeZone The timezone the returned Instant is expressed in
Returns
DateTime The Instant representing the exact time the function is called.

Flat Model Functions

CalculateChanges


CalculateChanges(FlatModel, FlatModel)	Returns a string that lists the differences between two flat models. The output of this function is impacted by any applicable Change Formatter that is defined.

CalculateChanges(FlatModel initial, FlatModel current)

Returns a string that lists the differences between two flat models. The output of this function is impacted by any applicable Change Formatter that is defined.

Parameters
FlatModel initial The first flat model.
FlatModel current The second flat model.
Returns
string The string listing the differences.
Examples
CalculateChanges(Previous,this) // Returns "Setup Double 1: 1.1 to 1\r\nSetup Double 2: 2.2 to 2\r\nSetup Double 3: 3.3 to <not set>"

Lookup


Lookup(List<FlatModel>, string, double \| string \| bool)	Finds a flat model in a given collection based on the target property.

Lookup(List<FlatModel> collection, string targetPropertyName, double | string | bool targetValue)

Finds a flat model in a given collection based on the target property.

Parameters
List<FlatModel> collection The collection to search.
string targetPropertyName The target property name.
double | string | bool targetValue The target property value to look for.
Returns
FlatModel The flat model, if found.
Examples
Lookup(Event.Championship.Account.BrakeSets, "Id", NBrakeSetFrontID) // Returns The first brake set found with an "Id" equivalent to the value stored in "NBrakeSetFrontID"

ReadAttachedFile


ReadAttachedFile(FlatModel, string)	Reads the contents of an attached file on a flat model and returns the contents as a string. Cannot be used on an attached file property that allows multiple files.

ReadAttachedFile(FlatModel model, string attachedFileName)

Reads the contents of an attached file on a flat model and returns the contents as a string. Cannot be used on an attached file property that allows multiple files.

Parameters
FlatModel model The flat model that contains the attached file property.
string attachedFileName The name of the attached file property.
Returns
string The read file as a string.
Examples
ReadAttachedFile(FrontSpring, "SpringData") // Returns the contents of the "SpringData" file, if any exists.

Select


Select(List<FlatModel>, string)	Return a list of property values from a collection of flat models.

Select(List<FlatModel> collection, string targetPropertyName)

Return a list of property values from a collection of flat models.

Parameters
List<FlatModel> collection The collection to iterate over.
string targetPropertyName The property name to return from each flat model.
Returns
List<double> A list with the same number of items as collection containing the property values found on each respective item.

JSON Functions

AddJsonObject


AddJsonObject(JsonElement, string, string)	Adds a new, empty JSON object to the JSON element provided.

AddJsonObject(JsonElement json, string path, string name)

Adds a new, empty JSON object to the JSON element provided.

Parameters
JsonElement json The JSON object to add to.
string path The path to add the new object to.
string name The name of the new, empty JSON object.
Returns
JsonElement The resultant JSON object.

AddJsonValue


AddJsonValue(JsonElement, string, string, double \| string \| bool \| DateTime)	Adds a value to a JSON object.

AddJsonValue(JsonElement json, string path, string name, double | string | bool | DateTime value)

Adds a value to a JSON object.

Parameters
JsonElement json JSON object to add to.
string path Path to add the new object to.
string name The name of the new value.
double | string | bool | DateTime value The new value to add.
Returns
JsonElement The resultant JSON object.

FindJsonObjectFromJsonObjectArray


FindJsonObjectFromJsonObjectArray(JsonElement, string, string, string)	Searches for and returns the first JSON object within a JSON array that matches a specified search criteria.

FindJsonObjectFromJsonObjectArray(JsonElement jsonElement, string path, string pathToSearch, string valueToFind)

Searches for and returns the first JSON object within a JSON array that matches a specified search criteria.

Parameters
JsonElement jsonElement The JSON object to search.
string path The path to the JSON array.
string pathToSearch The path to the value to check against.
string valueToFind The value to match.
Returns
JsonElement The found JSON object.

GetBooleanFromJsonElement


GetBooleanFromJsonElement(JsonElement, string)	Extracts a boolean value from an input JSON object, based on the input path.

GetBooleanFromJsonElement(JsonElement json, string path)

Extracts a boolean value from an input JSON object, based on the input path.

Parameters
JsonElement json The JSON object to search in.
string path The path to the boolean value. Supports indices if an item from array is to be retrieved.
Returns
bool The found boolean value.
Examples
GetStringFromJsonElement(jsonObject, "Car.FlSuspension.Points.2.IsInboard") // Returns boolean value (e.g. "False")

GetDoubleFromJsonElement


GetDoubleFromJsonElement(JsonElement, string)	Extracts a double value from an input JSON object, based on the input path.

GetDoubleFromJsonElement(JsonElement json, string path)

Extracts a double value from an input JSON object, based on the input path.

Parameters
JsonElement json The JSON object to search in.
string path The path to the double value. Supports indices if an item from array is to be retrieved.
Returns
double The found double value.
Examples
GetDoubleFromJsonElement(jsonObject, "Car.FlSuspension.Points.2.Coordinates.X") // Returns double value (e.g. "2.5")

GetJsonFromOtherProfile


GetJsonFromOtherProfile(string, FlatModel)	Returns the JSON from another profile.

GetJsonFromOtherProfile(string profileName, FlatModel exportScope)

Returns the JSON from another profile.

Parameters
string profileName Profile name to retrieve from.
FlatModel exportScope The scope for the export.
Returns
JsonElement The JSON in the other profile.

GetJsonObjectFromJsonElement


GetJsonObjectFromJsonElement(JsonElement, string)	Extracts one JSON object from another JSON object, based on an input path.

GetJsonObjectFromJsonElement(JsonElement jsonElement, string path)

Extracts one JSON object from another JSON object, based on an input path.

Parameters
JsonElement jsonElement The parent JSON object.
string path The path at which the child JSON object is located. The path supports indices if an item from an array is to be retrieved.
Returns
string The found child JSON object.
Examples
GetJsonObjectFromJsonElement(jsonObject, "Car.FlSuspension.Points.2.Coordinates") // Returns a JSON object (e.g. { "X": 2.5, "Y": 1 })

GetStringFromJsonElement


GetStringFromJsonElement(JsonElement, string)	Extracts a string value from an input JSON object, based on the input path.

GetStringFromJsonElement(JsonElement json, string path)

Extracts a string value from an input JSON object, based on the input path.

Parameters
JsonElement json The JSON object to search in.
string path The path to the string value. Supports indices if an item from array is to be retrieved.
Returns
string The found string value.
Examples
GetStringFromJsonElement(jsonObject, "Car.FlSuspension.Points.2.Coordinates.Comments) // Returns the found "Comments" property.

IsJsonPathValid


IsJsonPathValid(JsonElement, string)	Checks if the provided path is valid in the provided JsonElement.

IsJsonPathValid(JsonElement json, string path)

Checks if the provided path is valid in the provided JsonElement.

Parameters
JsonElement json The JSON object to validate against.
string path The path to validate.
Returns
bool A boolean indicating whether the path is valid or not.

ParseJson


ParseJson(string)	Parses the provided string and returns the parsed string as a JSON object.

ParseJson(string json)

Parses the provided string and returns the parsed string as a JSON object.

Parameters
string json The string to parse to JSON.
Returns
JsonElement The parsed JSON object.
Examples
ParseJson(ReadAttachedFile(FrontSpring, "SpringData")) // Returns the parsed attached JSON file

SelectBooleanFromJsonObjectArray


SelectBooleanFromJsonObjectArray(JsonElement, string, string)	Extracts a list of boolean values from objects in an array within the input JSON object, based on an input path.

SelectBooleanFromJsonObjectArray(JsonElement json, string path, string propertyToSelect)

Extracts a list of boolean values from objects in an array within the input JSON object, based on an input path.

Parameters
JsonElement json The base JSON object.
string path The path the list can be found at in the json object.
string propertyToSelect The property name to return from each item in the list at path.
Returns
List<bool> A list of booleans of the same length as the list found at path containing the values of PropertyToSelect.
Examples
SelectBooleanFromJsonObjectArray(jsonObject, "Car.FlSuspension.Points", "IsValid") // Returns A list containing the values of the "IsValid" property on each item in the  "Car.FlSuspension.Points" list in the base JSON object.

SelectDoubleFromJsonObjectArray


SelectDoubleFromJsonObjectArray(JsonElement, string, string)	Extracts a list of boolean values from objects in an array within the input JSON object, based on an input path.

SelectDoubleFromJsonObjectArray(JsonElement json, string path, string propertyToSelect)

Extracts a list of boolean values from objects in an array within the input JSON object, based on an input path.

Parameters
JsonElement json The base JSON object.
string path The path the list can be found at in the json object.
string propertyToSelect The property name to return from each item in the list at path.
Returns
List<double> A list of doubles of the same length as the list found at path containing the values of PropertyToSelect.
Examples
SelectDoubleFromJsonObjectArray(jsonObject, "Car.FlSuspension.Points", "Distance") // Returns A list containing the values of the "Distance" property on each item in the  "Car.FlSuspension.Points" list in the base JSON object.

SelectStringFromJsonObjectArray


SelectStringFromJsonObjectArray(JsonElement, string, string)	Extracts a list of string values from objects in an array within the input JSON object, based on an input path.

SelectStringFromJsonObjectArray(JsonElement json, string path, string propertyToSelect)

Extracts a list of string values from objects in an array within the input JSON object, based on an input path.

Parameters
JsonElement json The base JSON object.
string path The path the list can be found at in the json object.
string propertyToSelect The property name to return from each item in the list at path.
Returns
List<string> A list of strings of the same length as the list found at path containing the values of PropertyToSelect.
Examples
SelectStringFromJsonObjectArray(jsonObject, "Car.FlSuspension.Points", "Name") // Returns A list containing the values of the "Name" property on each item in the  "Car.FlSuspension.Points" list in the base JSON object.

SubstituteJsonValue


SubstituteJsonValue(JsonElement, string, double \| string \| bool, bool)	Replace a specified item in a JSON object.
SubstituteJsonValue(JsonElement, string, double, bool, string)	Replace a specified item in a JSON object with formatting applied.

SubstituteJsonValue(JsonElement json, string path, double | string | bool newValue, bool ignoreNull)

Replace a specified item in a JSON object.

Parameters
JsonElement json The base JSON object.
string path The path to the element to replace.
double | string | bool newValue The new value.
bool ignoreNull Whether to substitue newValue if it is null or not. If false, and newValue evaluates to null, nothing will be done.
Returns
JsonElement The resultant JSON object.

SubstituteJsonValue(JsonElement json, string path, double newValue, bool ignoreNull, string formatString)

Replace a specified item in a JSON object with formatting applied.

Parameters
JsonElement json The base JSON object.
string path The path to the element to replace.
double newValue The new value.
bool ignoreNull Whether to substitue newValue if it is null or not. If false, and newValue evaluates to null, nothing will be done.
string formatString If newValue is a double, this format string will be applied to it before substituting.
Returns
JsonElement The resultant JSON object.

Math Expressions

Syntax​

Accessing a parameter​

Operators​

String concatenation​

Constant values​

Keywords​

Scopes​

Unit Management​

Function Reference​

Numerical Functions​

Absh4 { font-size: 26px; }​

Abs(double value)h5 { font-size: 20px; font-style: italic; }​

ACosh4 { font-size: 26px; }​

ACos(double value)h5 { font-size: 20px; font-style: italic; }​

ASinh4 { font-size: 26px; }​

ASin(double value)h5 { font-size: 20px; font-style: italic; }​

ATanh4 { font-size: 26px; }​

ATan(double value)h5 { font-size: 20px; font-style: italic; }​

Averageh4 { font-size: 26px; }​

Average(params double[] values)h5 { font-size: 20px; font-style: italic; }​

Cosh4 { font-size: 26px; }​

Cos(double value)h5 { font-size: 20px; font-style: italic; }​

Counth4 { font-size: 26px; }​

Count(List<FlatModel> | List<double> values)h5 { font-size: 20px; font-style: italic; }​

Degreesh4 { font-size: 26px; }​

Degrees(double value)h5 { font-size: 20px; font-style: italic; }​

DoubleToStringh4 { font-size: 26px; }​

DoubleToString(double value)h5 { font-size: 20px; font-style: italic; }​

FirstNotNullh4 { font-size: 26px; }​

FirstNotNull(params double[] values)h5 { font-size: 20px; font-style: italic; }​

Interpolateh4 { font-size: 26px; }​

Interpolate(List<FlatModel> models, string xParameterName, string valueParameterName, double xValue, bool extrapolate)h5 { font-size: 20px; font-style: italic; }​

Interpolate(List<FlatModel> models, string xParameterName, string yParameterName, string valueParameterName, double xValue, double yValue, bool extrapolate)h5 { font-size: 20px; font-style: italic; }​

Lengthh4 { font-size: 26px; }​

Length(string text)h5 { font-size: 20px; font-style: italic; }​

Maxh4 { font-size: 26px; }​

Max(params double[] values)h5 { font-size: 20px; font-style: italic; }​

Minh4 { font-size: 26px; }​

Min(params double[] values)h5 { font-size: 20px; font-style: italic; }​

Pih4 { font-size: 26px; }​

Pi()h5 { font-size: 20px; font-style: italic; }​

Powerh4 { font-size: 26px; }​

Power(double value, double power)h5 { font-size: 20px; font-style: italic; }​

Radiansh4 { font-size: 26px; }​

Radians(double value)h5 { font-size: 20px; font-style: italic; }​

Roundh4 { font-size: 26px; }​

Round(double value, double decimals)h5 { font-size: 20px; font-style: italic; }​

Signh4 { font-size: 26px; }​

Sign(double value)h5 { font-size: 20px; font-style: italic; }​

Sinh4 { font-size: 26px; }​

Sin(double value)h5 { font-size: 20px; font-style: italic; }​

Sqrth4 { font-size: 26px; }​

Sqrt(double value)h5 { font-size: 20px; font-style: italic; }​

Sumh4 { font-size: 26px; }​

Sum(List<double> values)h5 { font-size: 20px; font-style: italic; }​

Tanh4 { font-size: 26px; }​

Tan(double value)h5 { font-size: 20px; font-style: italic; }​

Truncateh4 { font-size: 26px; }​

Truncate(double value, double count)h5 { font-size: 20px; font-style: italic; }​

String Manipulation Functions​

Concatenateh4 { font-size: 26px; }​

Concatenate(double | string | bool value1, params double[] | string[] | bool[] value2)h5 { font-size: 20px; font-style: italic; }​

GetCurrentUserPropertyh4 { font-size: 26px; }​

GetCurrentUserProperty(string parameter)h5 { font-size: 20px; font-style: italic; }​

GetThemeNameh4 { font-size: 26px; }​

GetThemeName()h5 { font-size: 20px; font-style: italic; }​

Lefth4 { font-size: 26px; }​

Left(string text, double count)h5 { font-size: 20px; font-style: italic; }​

Lowerh4 { font-size: 26px; }​

Lower(string text)h5 { font-size: 20px; font-style: italic; }​

Midh4 { font-size: 26px; }​

Mid(string text, double start, double count)h5 { font-size: 20px; font-style: italic; }​

Properh4 { font-size: 26px; }​

Proper(string text)h5 { font-size: 20px; font-style: italic; }​

Replaceh4 { font-size: 26px; }​

Replace(string text, double start, double count, string replacement)h5 { font-size: 20px; font-style: italic; }​

Righth4 { font-size: 26px; }​

Right(string text, double count)h5 { font-size: 20px; font-style: italic; }​

StringToDateTimeh4 { font-size: 26px; }​
