Callbacks

Callbacks are used to send data changes from the HH Data Management server to external services. A callback in HH Data Management is triggered when a client sends a sync operation to the server, which then forwards this sync op to the resource defined by the callback. There are two kinds of callbacks currently supported by HH Data Management:

  • AWS SQS: the HH DM server can put data into an AWS (Amazon Web Services) SQS (Simple Queue Service) that the user specifies
  • HTTP: the HH DM server can make an HTTP POST to a URL that the user specifies

To define a callback, visit the Integrations section on the website:

AWS SQS​

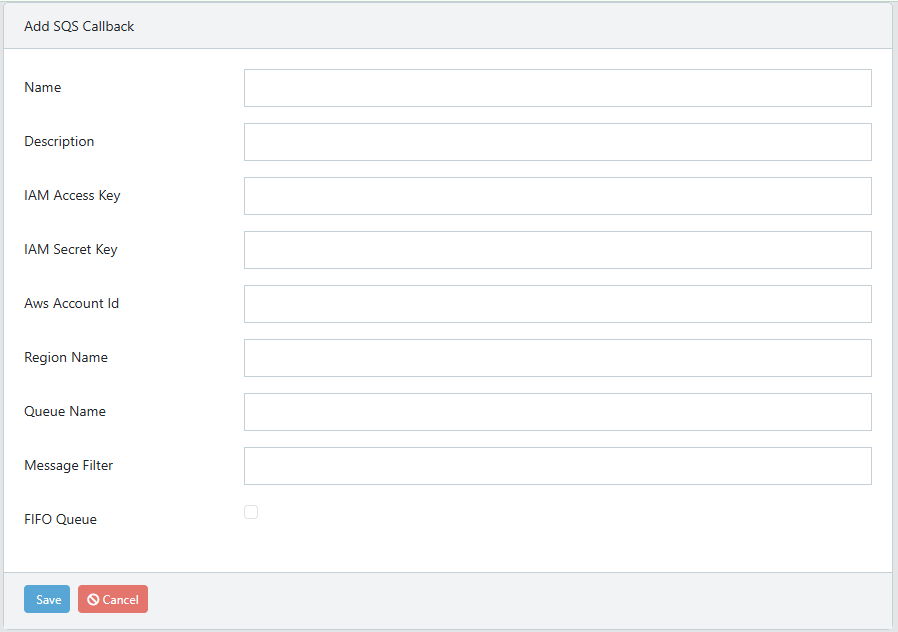

When a new AWS SQS callback is created some information for the SQS queue will need to be entered:

  • Name: a name to identify the callback.
  • Description: any further information that should be recorded for the callback.
  • IAM Access Key: the HH Data Management server needs an IAM identity with access to the target SQS queue.  Enter the access key for this IAM user in this field.
  • IAM Secret Key: the HH Data Management server needs an IAM identity with access to the target SQS queue.  Enter the secret key for this IAM user in this field.
  • AWS Account ID: the AWS account ID that owns the SQS queue (this is required to build the SQS queue URL).
  • Region Name: the AWS region where the SQS queue is hosted (this is required to build the SQS queue URL).
  • Queue Name: the name of the target SQS queue (this is required to build the SQS queue URL).
  • Message Filter: a semi-colon separated list of HH Data Management messages that should be added to the SQS queue.  An example might be AddSetupMessage;UpdateSetupMessage;DeleteSetupMessage if a queue should be notified of any changes to setups.  If this field is left blank then all messages will be added to the SQS queue.
  • FIFO Queue: set this to true when the target queue is an AWS SQS FIFO queue. When enabled, HH Data Management sends a deduplication id and a message group id with each callback message.
  • FIFO Group Id Source: controls how the FIFO MessageGroupId is chosen when FIFO Queue is enabled:
    • AccountId: uses the HH Data Management account id as the message group id.
    • ItemId: uses the sync message item id as the message group id.
    • This setting is only relevant for FIFO queues.

HTTP​

When a new HTTP callback is created some information for the HTTP request will need to be entered:

  • Name: a name to identify the callback.
  • Description: any further information that should be recorded for the callback.
  • Address: the address of the API endpoint that should be called. Please note that the HH Data Management server does a POST to this address.
  • Auth Key: a key that can be included in the headers of the request. The name of the header is authkey. If this field is left blank the header will not be included.
  • Message Filter: a semi-colon separated list of HH Data Management messages that should be added to the SQS queue. An example might be AddSetupMessage;UpdateSetupMessage;DeleteSetupMessage if a queue should be notified of any changes to setups.  If this field is left blank then all messages will be added to the SQS queue.

Example Content​

An example of the content that would be sent to a callback is:

{
  "MessageType": "UpdateSetupMessage",
  "ItemId": "0adf0ecf-389e-4dfe-9af4-96ff90aab4ad",
  "Payload": {
    "CustomPropertyDefinitionId": "71d5a9b2-7e9a-42c2-abe3-f9add1ec2bb4",
    "CustomProperties": [
      {
        "CustomPropertyType": 0,
        "Name": "CamberFL",
        "Value": "5"
      }
    ],
    "CollectionItemsAdded": [],
    "CollectionItemsUpdated": [],
    "CollectionItemsDeleted": [],
    "CollectionOrderUpdates": [],
    "EntityProperties": [
      {
        "Name": "LastModifiedBy",
        "Value": "5a808284-6fb7-47a6-95b3-e199600e05dd"
      },
      {
        "Name": "LastModifiedDate",
        "Value": "2021-01-17T15:11:15Z"
      }
    ]
  }
}
